Moving a precision surface plate seems like a straightforward task on the surface, but it involves much more than just brute strength. These foundational tools in metrology demand careful attention to every detail during `surface plate handling and lifting` to preserve their inherent accuracy. Ignoring proper procedures can introduce subtle yet significant distortions, compromising the very flatness these plates are designed to provide.
Precision granite surface plates are calibrated to incredibly tight tolerances, making them highly susceptible to damage from improper movement. Even minor stresses during `rigging granite plate` can lead to permanent flatness deviations, turning a reliable reference into an unreliable one. Understanding the unique vulnerabilities of these heavy, brittle objects is key to maintaining their integrity over years of use.
This article explores the best practices for `surface plate handling and lifting`, focusing on safe techniques that prevent costly damage and ensure your measurement standards remain precise. We will cover everything from initial assessment and proper `lifting eyes` usage to re-installation and post-move verification. Protecting your investment and ensuring accurate measurements starts with moving these critical tools correctly.
Why Handling Mistakes Create Long-Term Measurement Issues
Surface plates, especially those made from granite, possess inherent material properties that make them both stable and fragile. Any shock or uneven pressure during `surface plate handling and lifting` can introduce internal stresses that lead to micro-fractures. These invisible cracks can propagate over time, slowly degrading the plate’s critical flatness.
Even if a plate appears undamaged externally after a rough move, its internal structure might have suffered. This internal damage often manifests as subtle deviations in flatness, which become apparent only during subsequent calibration checks. Such `hidden flatness problems` can cause significant measurement errors, impacting product quality and compliance.
A precision surface plate is a long-term investment in accurate metrology, and its longevity directly depends on how it is treated throughout its lifespan. Mishandling can prematurely age the plate, requiring more frequent re-calibration or even replacement much sooner than expected. This translates to unexpected costs and potential downtime for your quality control processes.
Think of the granite’s crystalline structure; it offers excellent stability but little elasticity. Unlike metal, granite does not flex or deform temporarily under stress; instead, it tends to crack or chip. This fundamental difference means that impact forces or improper support during moves have lasting, detrimental effects.
The initial cost savings from cutting corners on `rigging granite plate` correctly are almost always overshadowed by future expenses. These expenses include repeated calibration services, production rejects due to inaccurate measurements, and the eventual need to replace a damaged plate. Proper handling from the start protects your investment and maintains your measurement integrity.
Environmental factors like temperature fluctuations or sudden shifts can also exacerbate existing internal stresses from poor handling. A plate that was once perfectly flat might gradually show signs of distortion if it was stressed during a previous move. This gradual degradation makes it harder to pinpoint the exact cause of measurement drift.
Therefore, every step of the `surface plate handling and lifting` process needs careful planning and execution. This meticulous approach ensures that the plate’s structural integrity remains uncompromised, allowing it to serve as a reliable reference for years. It is a commitment to precision that pays dividends in consistent, accurate results.
Understanding Plate Weight, Balance, and Fragile Zones
Surface plates come in a wide range of sizes and weights, from small laboratory plates weighing a few hundred pounds to massive inspection plates weighing several tons. Before any `surface plate handling and lifting` operation, you absolutely must know the exact weight of your specific plate. Overestimating lifting capacity or underestimating plate weight is a recipe for disaster, risking injury and severe damage.
Granite is a dense material, and its weight is distributed evenly across the plate’s volume, but its center of gravity needs careful consideration for balanced lifting. Improperly balanced `rigging granite plate` can cause the plate to tilt unexpectedly, leading to impacts or uneven stresses that compromise flatness. Always locate the plate’s center of gravity before attaching any lifting hardware.
| Plate Size (L x W) | Approximate Weight (lbs) | Typical Thickness (inches) |
|---|---|---|
| 18″ x 24″ | 200 – 300 | 3 – 4 |
| 24″ x 36″ | 400 – 600 | 4 – 5 |
| 36″ x 48″ | 800 – 1,200 | 5 – 6 |
| 48″ x 72″ | 2,000 – 3,000 | 6 – 8 |
| 60″ x 96″ | 4,000 – 6,000 | 8 – 10 |
The edges and corners of a surface plate are particularly vulnerable to chipping and breakage during a move. These areas are not only the first points of contact with obstacles but also structurally weaker than the broad flat surfaces. Protecting these fragile zones is a primary concern during `transport damage prevention` efforts.
Additionally, some plates have drilled holes for `lifting eyes` or threaded inserts for accessories. While these are designed for specific uses, they can become weak points if subjected to inappropriate forces or if the wrong type of hardware is used. Always refer to the manufacturer’s guidelines for using these features.
Understanding the plate’s thickness also helps in assessing its rigidity and potential for deflection. Thicker plates generally handle stress better, but no plate is impervious to damage from careless handling. Even a thick plate can crack or lose flatness if dropped or subjected to concentrated point loads.
The specific grade of granite, whether black, pink, or gray, can also influence its physical properties, though all require careful handling. While black granite is often denser and harder, every type of precision granite needs the same meticulous approach to movement. Always treat your plate as if it were the most delicate instrument in your facility.
Knowing your plate’s characteristics thoroughly is the first step towards a safe and successful move. This foundational knowledge allows you to select the right equipment and employ the most appropriate techniques for your specific situation. Never assume anything when it comes to the weight and fragility of these critical metrology tools.

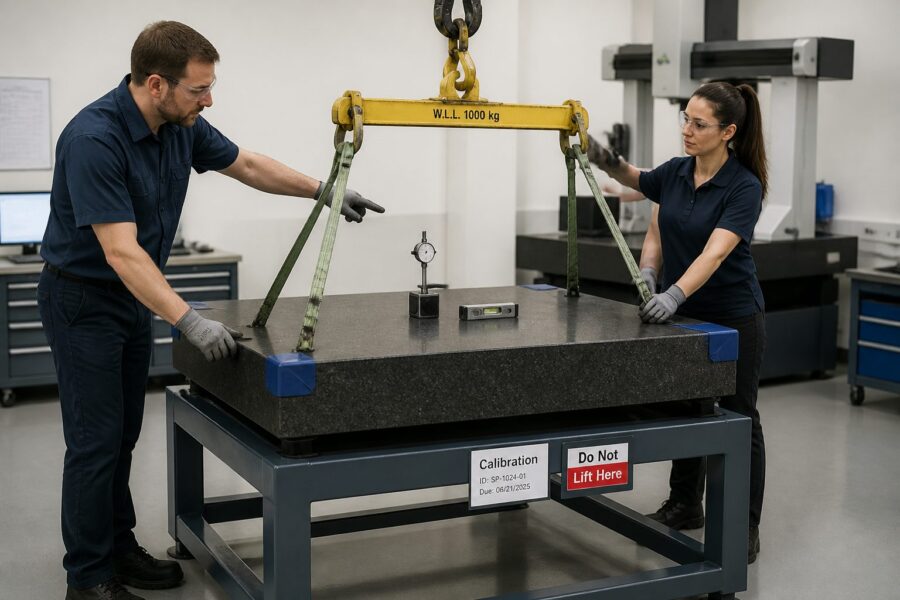

Lifting Methods: Inserts, Slings, and Approved Hardware
The safest and most recommended method for `surface plate handling and lifting` involves using factory-installed `lifting eyes` or threaded inserts. Many larger plates come equipped with these features, designed specifically to distribute the plate’s weight evenly during vertical lifts. Always use the manufacturer-specified lifting hardware, such as eyebolts or custom spreader bars, with these inserts.

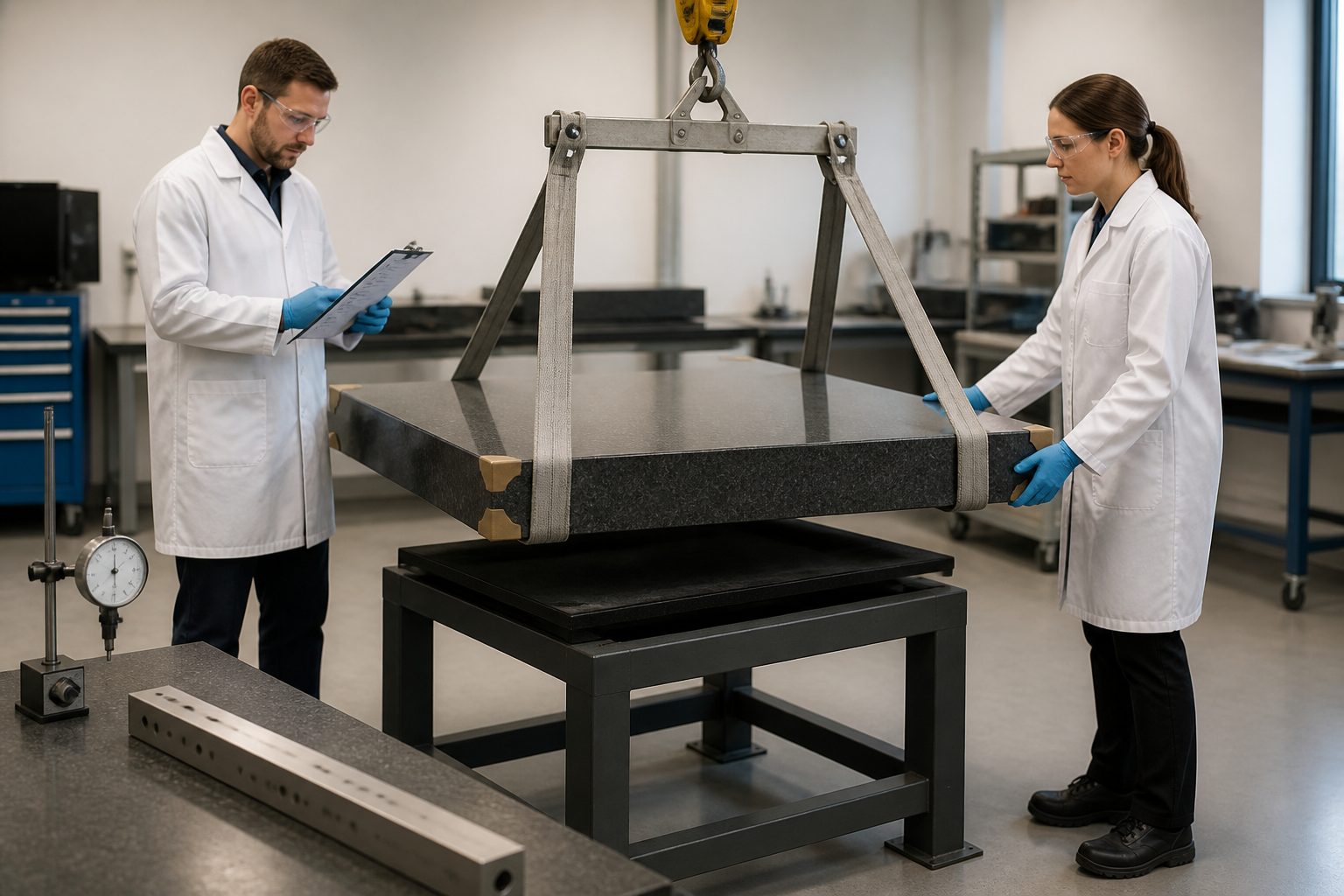

When plates do not have dedicated lifting points, broad, flat web slings are often used for `rigging granite plate`. These slings must be positioned carefully to ensure the plate is balanced and that the sling material does not contact sharp edges that could fray or cut it. Use spreader bars with slings to prevent inward pressure on the plate’s sides, which can cause cracking or bowing.
Never use chains or wire ropes directly on a granite surface plate, as these can easily chip the edges or concentrate stress unevenly. If chains are part of your overhead lifting system, always ensure they connect to a spreader bar or other approved hardware that interfaces with soft, wide slings. This minimizes the risk of direct, damaging contact with the granite.
Vacuum lifting devices can also be effective for moving surface plates, especially those without lifting inserts. These systems use powerful suction cups to grip the plate’s flat surface, providing a secure and balanced lift. However, ensure the vacuum lifter has sufficient capacity for the plate’s weight and that the plate surface is clean and dry for optimal suction.
When selecting any lifting hardware, always verify its load capacity exceeds the plate’s weight by a substantial margin, typically a safety factor of 2 or more. Inspect all slings, `lifting eyes`, and other components for wear, damage, or deformation before each use. Compromised equipment poses a serious risk to both the plate and personnel.
Using specialized dollies or air casters can facilitate horizontal movement once the plate is lifted clear of its stand. Air casters are particularly useful for very heavy plates, allowing them to glide across the floor with minimal effort and vibration. Always ensure the path is clear and level when using these devices.
It is also important to consider the type of crane or hoist being used for the lift. Ensure the equipment is properly maintained, certified, and operated by trained personnel. A smooth, controlled lift is paramount for `transport damage prevention` and successful `surface plate handling and lifting`.
Preparing the Route: Floors, Doors, and Clearances
Before any `surface plate handling and lifting` begins, thoroughly plan and prepare the entire route from the plate’s current location to its destination. This planning phase is just as critical as the lifting itself, preventing unforeseen obstacles and accidents. A clear path ensures a smooth, uninterrupted move, minimizing the chance of impacts or drops.
Inspect all floors along the route for unevenness, cracks, or debris that could impede movement or cause instability. For heavier plates, assess the floor’s load-bearing capacity to ensure it can support the combined weight of the plate and lifting equipment. Reinforcing floors or using load-spreading plates might be necessary in some older facilities.
Measure all doorways, hallways, and overhead clearances with precision, leaving ample room for the plate and any lifting apparatus. Remember that the plate’s diagonal dimension can be surprisingly large, so account for this when navigating tight spaces. Removing doors or temporarily relocating ceiling fixtures might be required for safe passage.
Clear the path of all personnel, tools, and unnecessary equipment to create a dedicated safety zone. Establish clear communication protocols among the moving team, using hand signals or two-way radios as appropriate. This minimizes confusion and ensures everyone is aware of the plate’s movement.
Consider the use of temporary ramps or shoring if there are changes in floor height or small steps along the route. These should be sturdy, securely placed, and have a gentle slope to avoid sudden jolts. Any abrupt change in elevation can stress the plate or make it difficult to control.
For outdoor moves or areas exposed to the elements, plan for weather conditions. Rain or snow can make surfaces slippery and increase the risk of accidents. If possible, schedule moves during favorable weather, or provide temporary coverings to protect the plate and ensure a safe working environment.
Finally, identify any emergency stops or procedures in case of an unforeseen problem during the move. Knowing how to safely abort a lift or secure a partially moved plate is crucial for preventing serious damage or injury. Thorough route preparation is a fundamental aspect of `transport damage prevention` for any precision equipment.
How to Protect Edges, Corners, and the Working Surface
Protecting the vulnerable edges and corners of a surface plate is paramount during any `surface plate handling and lifting` operation. These areas are prone to chipping and cracking, which can compromise the plate’s overall integrity and measurement capability. Simple, effective measures can make a significant difference in preventing damage.
The working surface itself also requires protection from scratches, impacts, and contamination during transit. Even a minor scratch on the precision-lapped surface can affect its ability to provide accurate readings. Implementing robust protective measures is a non-negotiable step for `transport damage prevention`.
- Wrap edges and corners with thick, dense foam padding.
- Use custom-fit wooden crates or heavy-duty cardboard protectors.
- Apply protective film or heavy plastic sheeting to the top surface.
- Ensure all padding is securely taped or strapped in place.
- Avoid direct contact with lifting straps on unprotected edges.
- Use corner guards specifically designed for heavy, fragile items.
- Keep the working surface clean and dry before applying protection.
When using slings for `rigging granite plate`, always ensure that the slings are wide and padded where they contact the plate. This spreads the load over a larger area, reducing concentrated pressure that could cause damage. Sharp edges on the plate can also cut through unpadded slings, creating a dangerous situation.
Consider using a plywood or wooden frame around the perimeter of the plate for added structural protection, especially for larger plates. This frame acts as a buffer against accidental bumps and scrapes during navigation through tight spaces. It provides an extra layer of defense for the most vulnerable parts of the plate.
For long-distance transport, professional crating services are often the best choice. These services design custom crates that suspend the plate, protecting it from vibration and impact during shipping. The cost of professional crating is usually far less than the cost of replacing or re-lapping a damaged plate.
After reaching its destination and before unwrapping, carefully inspect the plate for any visible signs of damage. Document any new chips, cracks, or scratches immediately. This helps in assessing potential issues and ensuring the plate’s condition is as expected after the move.
Remember that even seemingly minor damage to the edges or corners can propagate into the working surface over time. Proactive protection during every move is a small investment that yields significant returns in preserving the plate’s long-term accuracy and utility. Don’t overlook these critical protective steps.
Loading and Unloading: What to Watch at the Forklift
Forklifts are powerful tools for `surface plate handling and lifting`, but they require extreme caution when used with precision granite. The primary concern is ensuring the plate is stable and fully supported across its entire length during both loading and unloading. Uneven support from forklift tines can easily cause the granite to crack or fracture.
Always use a forklift with a load capacity significantly greater than the plate’s weight to ensure stable lifting and maneuvering. Extend the forklift tines as far as possible under the plate, ensuring they are evenly spaced and support the plate’s full width. Never attempt to lift a plate with only partially extended tines, as this creates dangerous cantilever forces.
Place thick, non-slip padding, such as rubber mats or dense foam, on the forklift tines before sliding them under the plate. This padding protects the plate’s underside from scratches and distributes the load more evenly, preventing stress concentrations. Direct metal-on-granite contact should always be avoided.
When lifting, ensure the plate is centered on the tines and stable before raising it more than a few inches off the ground. Move the forklift slowly and deliberately, avoiding sudden starts, stops, or turns that could shift the plate. Any abrupt movement can dislodge the plate or cause it to impact the forklift mast, leading to significant damage.
For larger plates, it is often better to use a spreader bar attached to the forklift mast, allowing for `rigging granite plate` with slings from above. This method provides more even support and reduces the risk of damage from direct tine contact. It is a preferred approach for `transport damage prevention` when moving substantial granite pieces.
During unloading, carefully lower the plate onto its designated stand or temporary support, ensuring it settles evenly. Do not drop the plate, even a small distance, as this impact can easily damage the granite. Once the plate is stable on its new base, slowly withdraw the forklift tines, making sure they do not snag or scrape the plate’s underside.
Maintain clear communication between the forklift operator and ground personnel at all times. Use clear hand signals and ensure all personnel are well clear of the moving plate. Safety around forklifts is paramount, especially when handling heavy and fragile loads like surface plates.
Re-Installing on the Stand Without Twisting the Plate
The final placement of a surface plate onto its stand is a critical step that demands precision to maintain the plate’s inherent flatness. Incorrect re-installation can introduce internal stresses, causing the plate to twist or bow, even if it was perfectly flat before the move. This is where careful `surface plate handling and lifting` culminates.
Most precision surface plate stands are designed with a three-point support system, which is inherently stable and prevents rocking or twisting. Ensure that the stand itself is level and stable before attempting to place the plate upon it. Any wobble in the stand will transfer directly to the plate, compromising its accuracy.
Carefully lower the plate onto the stand, ensuring that each of the three support points makes simultaneous contact. Avoid dropping one side or corner first, as this can momentarily create uneven pressure, stressing the granite. A slow, controlled descent is absolutely essential for `rigging granite plate` correctly onto its base.
Once the plate is resting on the three support points, do not attempt to slide or drag it into final position. Any lateral movement can cause friction and uneven wear on the support points, or worse, introduce twisting forces into the plate. If minor adjustments are needed, carefully lift the plate slightly and then re-lower it.
For plates with threaded inserts and `lifting eyes`, use these points to gently guide the plate into its final resting place. This allows for precise positioning without inducing any shear forces. Always follow the manufacturer’s instructions for tightening any securing bolts on the stand, as overtightening can also distort the plate.
Some stands feature adjustable leveling screws at each support point. After the plate is initially placed, these screws can be used to fine-tune the plate’s level. However, remember that these are for leveling the plate, not for forcing it into a desired flatness; the plate’s inherent flatness comes from its manufacturing process and proper support.
Allow the plate to settle on its stand for at least 24 hours before conducting any critical measurements or post-move checks. This allows the granite to acclimate to its new support and any minor thermal changes in the environment. Rushing this step can lead to inaccurate initial readings.
Post-Move Checks You Should Always Do
After successfully completing `surface plate handling and lifting` and re-installing the plate, the work is not yet finished. You must perform a series of post-move checks to confirm the plate’s integrity and accuracy before putting it back into service. Skipping these steps risks making critical measurements on a compromised reference.
The most important check is a thorough visual inspection of the entire plate, paying close attention to edges, corners, and the working surface. Look for any new chips, cracks, or scratches that might have occurred during `rigging granite plate` or transit. Even minor damage can indicate underlying stress or a potential future problem.
Next, use a precision level to verify that the plate is properly leveled on its stand. While leveling does not affect the plate’s flatness, it is necessary for accurate measurements, especially when using instruments that rely on gravity. Adjust the stand’s leveling screws as needed, ensuring all three support points are firmly engaged.
For critical applications, a preliminary flatness check using an auto-collimator and reflector, or a specialized electronic level system, is highly recommended. This provides an immediate indication of whether the plate’s flatness has been significantly affected by the move. It is a proactive step in identifying `hidden flatness problems` quickly.
Compare the results of your preliminary flatness check to the plate’s original calibration certificate or its last known flatness values. A significant deviation indicates that the plate may have been damaged or improperly supported. In such cases, professional re-calibration is absolutely necessary before resuming use.
Also, check the stability of the stand itself. Gently try to rock the plate or its stand to ensure there is no movement or wobble. Any instability can introduce vibration and inaccuracy into your measurements. Tighten any loose bolts or adjust leveling feet as required.
Finally, clean the working surface thoroughly to remove any dust, debris, or protective materials that might have accumulated during the move. Use a specialized surface plate cleaner and a lint-free cloth, ensuring no residues are left behind. A clean surface is fundamental for accurate metrology.
Storage Guidelines for Temporary Moves
Sometimes, `surface plate handling and lifting` involves temporary storage rather than immediate re-installation. Proper storage is crucial to protect the plate from damage and environmental factors during these interim periods. Haphazard storage can quickly undo all the careful `transport damage prevention` efforts you’ve made.
If storing the plate for a short period, keep it in a temperature-controlled environment, ideally the same room where it will eventually be used. Extreme temperature fluctuations can cause the granite to expand and contract, potentially leading to stress or minor distortions over time. A stable environment is key to preserving its integrity.
Always store the surface plate horizontally, fully supported on its three-point stand or on a temporary, sturdy, and level platform. Never store a surface plate vertically on its edge, as this can cause bowing or internal stress due to its own weight. The uniform support is critical for maintaining flatness.
Cover the entire plate with a heavy-duty, waterproof cover or plastic sheeting to protect it from dust, dirt, and moisture. Ensure the cover extends beyond the edges to shield the vulnerable corners as well. Moisture can cause rust on any metal inserts or accessories, and dust can scratch the precision surface.
If the plate is crated for storage, ensure the crate is placed on a stable, level surface and away from heavy traffic areas. The crate itself should be clearly marked as containing fragile, precision equipment. This helps prevent accidental impacts or improper handling by uninformed personnel.
Avoid stacking anything on top of a stored surface plate, even if it’s covered or crated. The weight can induce stress on the granite, leading to `hidden flatness problems`. The plate’s working surface and internal structure should remain free from external loads during storage.
Regularly inspect the storage area for any signs of dampness, pests, or potential hazards that could affect the plate. A clean, dry, and secure storage environment is the best defense against long-term damage. Treat temporary storage with the same seriousness as active use.
Training Tips for Teams That Move Plates Occasionally
Even if `surface plate handling and lifting` is an infrequent task, proper training for all involved personnel is absolutely essential. Occasional moves often carry higher risks because staff may lack regular practice and familiarity with the specific procedures. Good training minimizes mistakes and ensures safety.
Start with a comprehensive overview of why surface plates are delicate and why proper handling is so critical. Explain how `hidden flatness problems` can arise from seemingly minor mishandling. Understanding the “why” often motivates teams to be more careful and attentive to details.
Provide hands-on demonstrations of correct `rigging granite plate` techniques, including how to attach `lifting eyes` or position slings safely. Allow team members to practice these techniques with supervision, perhaps using a scrap piece of granite or a smaller, less critical plate. Practical experience is invaluable.
Emphasize the importance of planning the route, checking clearances, and preparing the destination area. Walk through the entire planned route, pointing out potential hazards and discussing strategies to mitigate them. This proactive planning is a cornerstone of effective `transport damage prevention`.
Train on the specific equipment used for lifting, whether it’s an overhead crane, forklift, or specialized dollies. Ensure everyone understands the load capacities, safety features, and operating procedures for each piece of equipment. Proper equipment operation is non-negotiable for safe moves.
Establish clear communication protocols and practice them during training sessions. This includes designated roles, clear hand signals, and verbal commands. Effective communication prevents misunderstandings and ensures a coordinated, safe lift.
Develop a written standard operating procedure (SOP) for `surface plate handling and lifting` that is easily accessible to the team. This document should outline all steps, safety precautions, and equipment requirements. Review and update the SOP periodically, especially after any incidents or changes in equipment.
Finally, conduct refresher training sessions annually or whenever new personnel join the team. Reinforcing best practices helps maintain a high standard of safety and precision. Investing in training is an investment in the longevity and accuracy of your valuable metrology assets.
Conclusion
The careful `surface plate handling and lifting` of precision granite surface plates is not merely a logistical task; it is a critical aspect of maintaining metrology integrity. Every step, from initial planning and securing the plate with `lifting eyes` to navigating the route and re-installing it, demands meticulous attention. Neglecting these details risks introducing `hidden flatness problems` that can compromise all subsequent measurements.
Understanding the plate’s weight, balance, and fragile zones, alongside employing approved `rigging granite plate` methods, forms the foundation of safe movement. Proactive measures for `transport damage prevention`, like protecting edges and planning the route, are essential for preserving the plate’s inherent accuracy. A robust approach to moving these essential tools ensures their long-term reliability.
Ultimately, investing time and effort in proper handling procedures safeguards your valuable metrology investment and guarantees the continued accuracy of your quality control processes. It is a commitment to precision that pays dividends in consistent, reliable results for years to come. Treat your surface plate with the respect it deserves, and it will serve your measurement needs faithfully.
