Choosing the correct surface plate for your metrology needs can be challenging, especially with terms like Grade AA, Grade A, and Grade B. These classifications define distinct levels of flatness tolerance crucial for precision measurement. Understanding their practical differences directly impacts your work’s accuracy and operational efficiency.
Many shops mistakenly believe a higher grade is always better, often leading to unnecessary expenses. The real challenge is matching the plate’s capabilities to your specific inspection, layout, or calibration tasks. This guide demystifies `surface plate grade AA vs A vs B differences`, offering practical insights for real-world applications.
We will explore what each grade signifies, its appropriate uses, and how to make an informed `metrology grade selection` that aligns with your shop’s precision requirements and budget. The right choice ensures reliable measurements without overspending. Precision in metrology starts with understanding your foundational tools.

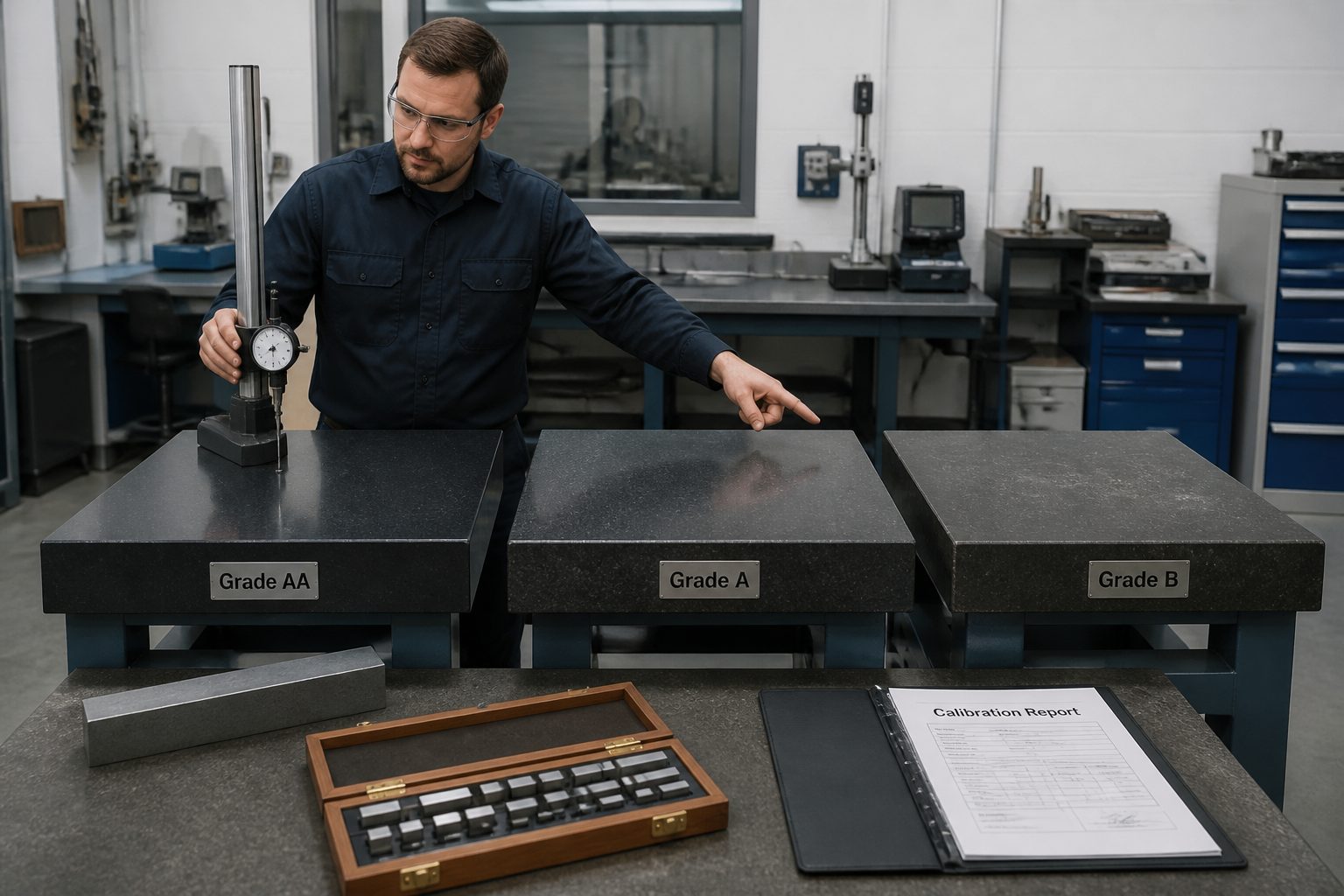

What the Three Surface Plate Grades Actually Define
Surface plate grades are set by industry standards like ASME B89.3.7 or Federal Specification GGG-P-463c, defining permissible deviation from a perfect flat plane. These standards ensure a plate’s grade meets universal flatness requirements, directly correlating to its overall tolerance.
A higher grade, like AA, signifies a much tighter flatness tolerance, meaning the surface is exceptionally close to perfectly flat. Conversely, a Grade B plate allows for greater deviation. This distinction underpins all discussions about `surface plate accuracy grades` and applications.
Manufacturing these granite calibration standards is meticulous, involving precision lapping and polishing. Achieving tighter tolerances for higher grades requires significantly more time, specialized equipment, and skilled labor, directly translating into higher production costs for Grade AA and Grade A plates compared to Grade B.
Each grade serves a specific purpose within metrology, supporting different levels of measurement precision. Incorrect selection compromises measurement integrity or leads to unnecessary cost. Understanding these definitions aids strategic choice.
Calibration verifies a plate’s flatness against tolerances, typically by accredited labs. This assigns its official grade and documents deviation. Regular calibration ensures the plate maintains its `granite plate tolerance comparison`.
Black granite offers inherent stability and low thermal expansion. However, plates are susceptible to wear, environmental changes, and settling, affecting flatness. Proper grade selection and care are essential for long-term accuracy.
Environmental factors like temperature and vibration influence flatness. Higher-grade plates are used in controlled environments to minimize these. The grade dictates the maximum allowable error introduced by the plate.
Shops must consider part and instrument precision. Using a Grade B plate for gauge block calibration, for instance, introduces unacceptable errors. Aligning the plate’s grade with required measurement uncertainty is crucial. Higher grades often need more frequent calibration, impacting overall cost of ownership.
Ultimately, the grade defines the reliability and accuracy expected from your surface plate as a reference. It is the fundamental characteristic differentiating its suitability for precision tasks, indicating its metrological capability.
Grade AA Flatness Tolerances and Where It Is Required
Grade AA represents the highest precision for granite surface plates, boasting the tightest flatness tolerances. Engineered for the most demanding metrology applications, where microscopic deviations compromise accuracy, Grade AA plates are found in environments dedicated to primary calibration and research.
Applications for Grade AA plates are specific and critical, requiring unwavering measurement integrity. They are indispensable for calibrating master gauge blocks, optical components, and other high-precision instruments serving as references for entire quality systems. These plates are a significant investment, reflecting superior manufacturing and testing.
| Surface Plate Grade | Overall Flatness Tolerance (per Federal Spec GGG-P-463c) | Typical Applications |
|---|---|---|
| Grade AA (Laboratory) | (25 + L/1000) microinches | Master gauge block calibration, optical component inspection, primary reference standards |
| Grade A (Inspection) | (50 + L/1000) microinches | CMM inspection, precision part inspection, toolroom inspection, quality control |
| Grade B (Toolroom/Shop) | (100 + L/1000) microinches | General layout work, marking, less critical assembly, basic dimensional checks |
| Commercial (Less Common) | (200 + L/1000) microinches | Rough layout, general fabrication, non-critical support surfaces |
Grade A Performance and the Most Common Inspection Uses
Grade A surface plates offer an excellent balance of precision and cost-effectiveness, making them the workhorse of many manufacturing and inspection facilities. Their flatness tolerance, looser than Grade AA but tighter than Grade B, suits a broad range of demanding tasks. It meets most precision measurement needs without Grade AA’s extreme cost.
Commonly found in quality control departments, toolrooms, and inspection labs, Grade A plates are ideal for mounting Coordinate Measuring Machines (CMMs) and optical comparators. They provide a stable, accurate foundation, supporting consistent, repeatable measurements.
For inspecting precision machined parts, assemblies, and fixtures, a Grade A surface plate provides the necessary accuracy to verify critical dimensions. Engineers rely on them to ensure components meet tight specifications, minimizing scrap and rework. This grade is a strategic choice for high-quality output.
Many general toolroom inspection tasks, such as checking parallelism, perpendicularity, and height measurements with gauge blocks and height gauges, are perfectly suited for a Grade A plate. It provides the reliable reference plane for accurate comparisons and measurements. Grade A’s `granite plate tolerance comparison` exceeds typical shop floor requirements.
Manufacturers use Grade A plates for final inspection of components before assembly or shipment, ensuring only parts meeting strict quality standards leave the facility. Consistent performance is essential for customer satisfaction and product integrity.
Calibration intervals for Grade A plates are typically once a year, though this varies by usage and environment. Regular calibration confirms the plate maintains its specified flatness tolerance, providing ongoing assurance of measurement accuracy. Routine maintenance is crucial for sustained precision.
For most shops needing high-accuracy measurements not involving primary standards, Grade A is the optimal `metrology grade selection`. It delivers the performance required for modern manufacturing without the Grade AA premium. Its practical tolerance handles most precision inspection tasks effectively.
Many calibration laboratories use Grade A plates for calibrating secondary standards, micrometers, calipers, and various other measuring tools. While not suitable for master gauge blocks, it is more than adequate for instruments used in daily production, demonstrating its versatility and reliability across metrology functions.
Compared to a Grade AA plate, Grade A’s slightly wider tolerance rarely impacts typical production inspections. The substantial cost difference makes Grade A more economically viable for most businesses, providing robust accuracy for everyday operations.
The durability of granite combined with Grade A precision means these plates offer a long service life with proper care. They withstand the rigors of a busy inspection department while maintaining critical flatness, often providing the best overall value for precision measurement.
Grade B for General Layout and Less Critical Work
Grade B surface plates are the most economical option, designed for general layout, marking, and less critical inspection tasks. While having looser flatness tolerance than Grade A or AA, they provide a superior flat reference plane than any workbench, making them valuable for many practical shop floor applications.
Typically found in fabrication, welding, or assembly departments, Grade B plates are used where overall flatness is important but extreme precision isn’t paramount. They serve as reliable bases for marking dimensions or checking basic relationships during assembly, accessible to a wider range of businesses due to affordability.
For tasks like setting up drill jigs, checking rough casting parallelism, or providing a stable surface for component assembly, Grade B plates perform admirably. They prevent errors from uneven surfaces, improving general fabrication quality. Shops trust these plates for foundational flatness in less demanding scenarios.
Significant cost savings allow shops to acquire a dependable flat reference without stretching their budget, making them attractive for startups or businesses with limited capital needing dimensional control. Investing in a Grade B plate improves basic shop accuracy.
While unsuitable for precise metrology instruments like CMMs or height gauges requiring micron-level accuracy, Grade B plates are perfectly adequate for calipers, rules, and basic scribing tools. They provide a stable platform, reducing measurement variability in layout work for more consistent marking and cutting.
Grade B plates are generally more robust and forgiving in harsher shop environments where dust, chips, and occasional impacts are common. Their wider tolerance means minor surface imperfections or wear have less impact on usability, making them a practical choice for heavy-duty applications.
These plates can also serve as stable bases for holding fixtures or workpieces during machining operations, ensuring a consistent setup plane. While not precision machining fixtures, they offer a reliable foundation for general work, and their substantial mass also dampens vibrations for more stable setups.
Many educational institutions and vocational training centers opt for Grade B plates as teaching tools. They provide students with hands-on experience using a flat reference surface without the expense of higher-grade plates, introducing new technicians to fundamental metrology principles.
For shops where the highest precision isn’t critical, the `surface plate grade AA vs A vs B differences` make Grade B a sensible and cost-effective choice. It fulfills the need for a flat, stable work surface without over-engineering, allowing businesses to allocate resources while ensuring foundational quality.
Regular calibration is still recommended for Grade B plates, perhaps every two to three years, to confirm their continued suitability. Even for general work, maintaining a known level of flatness prevents cumulative errors, demonstrating quality commitment.
How to Choose the Right Grade for Your Shop
Selecting the appropriate surface plate grade requires careful assessment of your specific needs, precision demands, and budget. It’s not about buying the “best” grade, but the “right” one that provides adequate accuracy without unnecessary expense. A thoughtful `metrology grade selection` ensures optimal performance and cost efficiency.
Consider the parts you measure and their tolerance requirements as the primary driver. For tolerances in the tens of thousandths of an inch, a Grade B plate might suffice; for micron-level tolerances, Grade A or AA is essential. Matching the plate’s accuracy to your part’s needs prevents both overspending and measurement errors.
- Identify the tightest tolerances of parts measured
- Consider the type of measuring instruments used (CMM, height gauge, calipers)
- Evaluate the shop environment (temperature control, cleanliness)
- Determine your budget for initial purchase and ongoing calibration
- Assess the volume and frequency of precision measurements
- Plan for future growth and potential changes in precision requirements
- Consult with metrology experts or your calibration service provider
Grade Markings and Verification Documentation
Every legitimate surface plate should bear a clear marking indicating its grade, usually stamped or etched onto the granite or an attached metal plate. This visible marking is your initial assurance of the plate’s quality and precision. Always check for it before purchasing or using for critical work.
The grade marking is only half the story; true verification comes from a comprehensive calibration certificate issued by an accredited laboratory. This document objectively proves the plate meets or exceeds specified `surface plate accuracy grades`. Without it, the grade marking holds limited value for serious metrology.
A reputable calibration certificate typically includes the plate’s serial number, dimensions, calibration date, measured overall flatness deviation, and often a detailed contour map. It also states the calibration standard, usually ASME B89.3.7 or Federal Specification GGG-P-463c. This information is essential for traceability and quality audits.
Traceability means calibration measurements can be linked to national or international standards, ensuring consistency across labs and countries. This chain of traceability is a cornerstone of reliable metrology, required by ISO 9001. A certificate without traceability is worthless for compliance.
Periodic re-calibration is a necessity to maintain measurement integrity. Surface plates, even granite, can wear, settle, or be affected by environmental factors, degrading flatness. The calibration interval depends on grade, usage, and environmental conditions.
Using an uncertified or unmarked surface plate for precision work introduces unknown variables, potentially leading to costly errors, rework, and recalls. This risk far outweighs perceived savings from skipping calibration or buying undocumented plates. Your quality system demands verifiable accuracy.
For businesses subject to quality audits or regulatory compliance, robust documentation of `granite plate tolerance comparison` against standards is non-negotiable. Auditors look for current, traceable calibration certificates for all metrology equipment. Proper documentation demonstrates quality control commitment.
Initial certification verifies the plate’s condition at purchase, while re-calibration confirms ongoing adherence to standards throughout its service life. Both are critical components of a comprehensive metrology program. Never assume a plate maintains original flatness indefinitely without periodic checks.
Understanding `surface plate grade AA vs A vs B differences` is incomplete without recognizing proper documentation’s importance. The certificate proves the plate performs at its stated grade, validating your `metrology grade selection` and supporting measurement confidence.
Always keep calibration certificates accessible and maintain a re-calibration schedule to ensure continuous compliance and accuracy. This proactive approach safeguards your shop against discrepancies and upholds your reputation for quality. Investing in proper documentation is investing in your business’s integrity.
Conclusion
The `surface plate grade AA vs A vs B differences` are critical, representing distinct levels of precision with practical implications for every shop. Understanding these `surface plate accuracy grades` is fundamental to making informed decisions that impact measurement reliability and operational costs. The right choice ensures a solid foundation for precision.
Grade AA plates are the gold standard for primary calibration and demanding scientific applications, offering unparalleled flatness at a premium. Grade A plates balance high precision for most CMMs and quality control without extreme expense. Grade B plates offer a cost-effective solution for general layout and less critical work, ensuring basic flatness where extreme accuracy isn’t required.
Your `metrology grade selection` should always align with the tightest tolerances of parts measured and the capabilities of your instruments. Overbuying leads to unnecessary expenditure, while underbuying compromises measurement integrity and product quality. Careful assessment of your needs is paramount.
Beyond the initial purchase, regular calibration and proper documentation are essential. A certified plate with a traceable calibration certificate provides verifiable proof of `granite plate tolerance comparison` against industry standards, crucial for internal quality control and external audits.
Investing in the correct surface plate grade is an investment in your entire metrology process’s accuracy and efficiency. It directly contributes to reduced rework, improved product quality, and increased customer confidence. Do not underestimate this foundational tool’s impact on your shop’s success.
Assess your current and future precision requirements thoughtfully. Consult metrology experts or your calibration service provider. Making an educated choice about your surface plate is a step towards consistent, reliable results in all manufacturing and inspection endeavors.
Remember, a surface plate is a long-term asset; its grade determines its suitability for years of service. A well-chosen and properly maintained plate serves as a dependable reference, ultimately saving money and enhancing your shop’s reputation for quality.
The clear and purposeful distinction between Grade AA, Grade A, and Grade B guides shops toward the most appropriate tool. By understanding these differences, you can confidently make a `metrology grade selection` that empowers your team to achieve the highest precision. Precision begins with the right foundation.
